TECHNICAL SERVICES

Balmoral Tanks’ technical services team provides comprehensive inspection, maintenance, repair and refurbishment services on all tank products whether they are of Balmoral origin or not.

A wide range of tank types are covered including:

• Cylindrical steel
• GRP sectional
• Rotationally moulded
• Glass fused to steel
• Epoxy steel
• Welded

On completion of the tank assessment a written report is provided including photographs, conclusions and remedial work recommendations.

Health and Safety

Balmoral Tanks’ technical services teams place the highest priority on health and safety. Full and comprehensive risk assessment and method statement documentation is carried out and completed with personnel certification being issued to the customer.

Technicians are fully trained to ensure all works are carried out safely and in compliance with current legislative standards. They hold full accreditation and have many years of experience in tank installation and technical services. Tank owners and operators can have 100% confidence in the company’s technical and practical capabilities.

Certification

• SMSTS Site Management Safety Training Scheme
• CPCS Construction Plant Competence Scheme
• CSCS Construction Skills Certification Scheme
• CCNSG Client/Contractor National Safety Group
• IPAF International Powered Access Federation
• PASMA Prefabricated Access Supply & Manufacture Association
• CITB Confined Space Trained

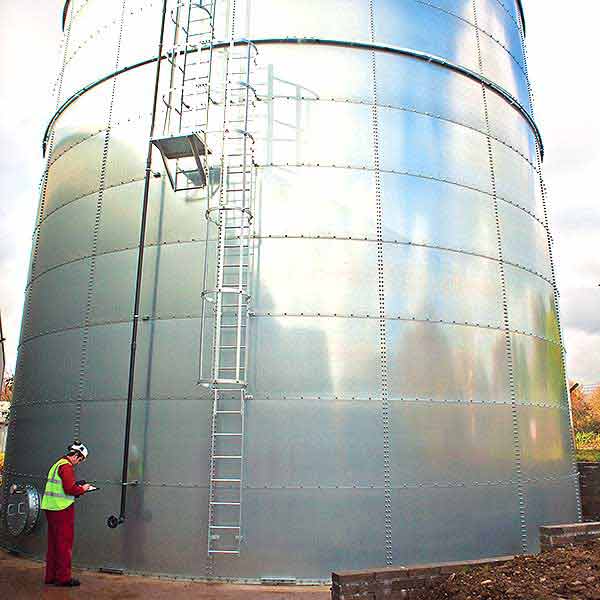

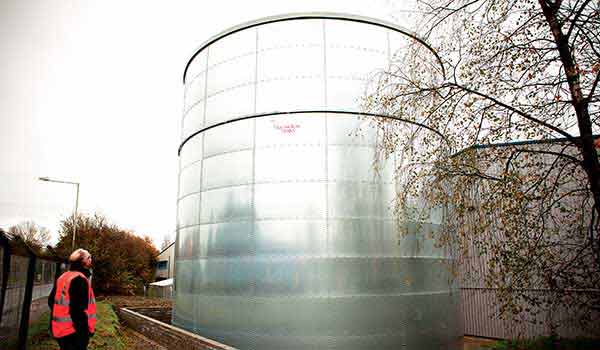

Risk assessment and visual inspection

Balmoral Tanks’ technical teams carry out external and internal inspections on all types of installation. Inspections focus on the tank material, eg, steel (galvanized or epoxy), GRP, concrete, etc, as well as identifying the design of tank, whether it is sectional bolted, welded or one-piece moulded.

Roof structures and supports are inspected and all ancillaries, fittings and fasteners are checked for signs of deterioration and potential failure. If the tank is of mastic sealed design all external seams are checked for signs of leaks. Similar external inspection methods are used on liner sealed tanks for signs of piercings.

Tank inspections can be complex and the following parameters are always taken into consideration:

• Tank isolation and draining
• Access and egress (confined space)
• Working at height (access equipment)
• Tank cleaning
• Health and safety controls

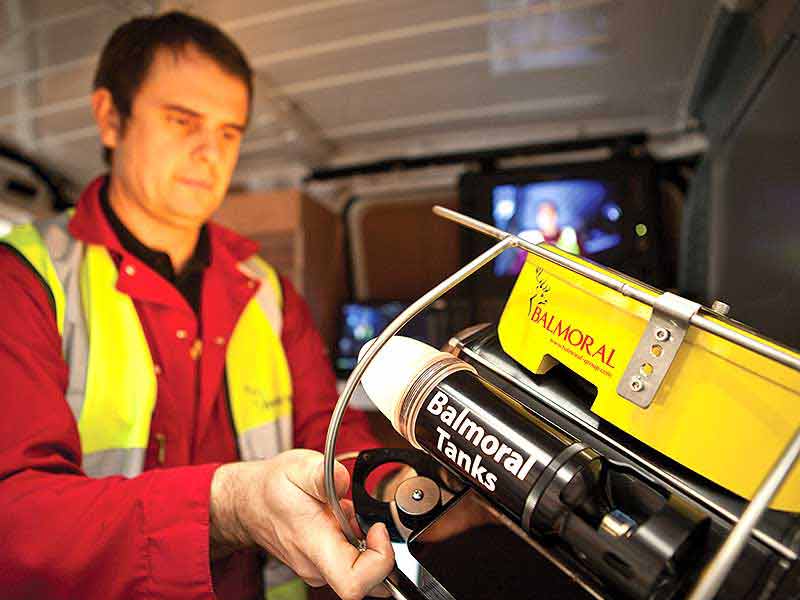

ROV inspection

A remotely operated vehicle (ROV) may appear to be overly-technical when carrying out an internal tank inspection, however, when the following points are considered it is undoubtedly the safest and most cost effective method available:

• Improved health and safety procedures
• No isolation of water supply or decommissioning of mechanical operations
• No disruption of water services
• No insurance premium payments for removing tank from service
• One man operation means reduced inspection costs
• No access equipment required for carrying out operations at height
• Highly detailed inspection
• No confined space working
• Inspection completed in a single day
• External tank inspection can be carried out simultaneously

ROV inspection includes:

• ROV micro submersible unit
• Umbilical tether
• Deployment tether unit
• Digital HD colour video camera
• Report, including images and recommendations
• Fully edited video and DVD options

On completion of an ROV inspection, Balmoral will provide a full report inclusive of images and DVD footage with conclusions and remedial works recommendations. Inspections are scheduled to cause minimal disruption.

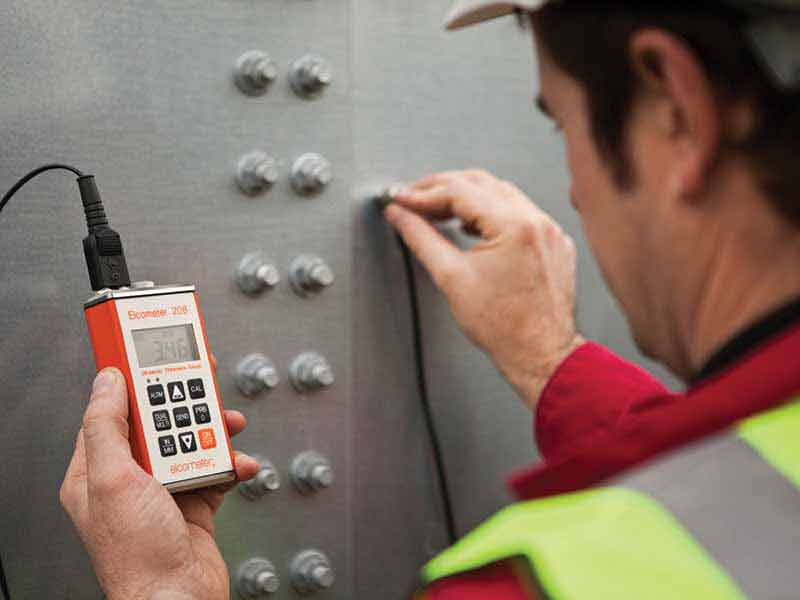

Ultrasonic thickness measurement (UTM)

An ultrasonic thickness gauge is designed to measure material thickness whilst eliminating the depth of coating on metal substrates.

The Balmoral Technical Services UTM gauge:

• Ignores the coating thickness
• Provides data output
• Is hand held and robust
• Benefits from a backlit display

The thickness of materials cannot always be determined by direct measurement as access to both sides is not always possible. The effects of corrosion and erosion on the reverse of a metal panel may reduce its thickness significantly without being visually apparent on the outside of the tank.

All UTM readings are gauged on the material to be tested with calibration beforehand using a 10mm transducer probe and three known test materials in echo-to-echo mode.

Thickness coating measurement (TCM)

Such a device has the capability to measure coating thicknesses whilst eliminating material depths. The digital reading is fast, reliable and accurate.

The Balmoral Technical Services TCM gauge:

• Ignores the material thickness
• Provides data output
• Ignores the coating thickness
• gnores the coating thickness

An internal probe provides greater stability during measurement allowing for consistent, repeatable and accurate results. Clients are provided with a test certificate and set of calibration foils following each inspection.

As well as providing a global installation capability, Balmoral Tanks offers a full tank inspection, maintenance, refurbishment and repair service. It is critical that tank installations are well managed and regularly inspected so that continuous levels of reliability and performance are maintained.

Balmoral can help by providing planned inspection and maintenance programmes to ensure your installation stays in top condition whatever brand of tank you may have.

Looking after your tanks and ensuring you have the right maintenance programme in place is important as small problems can quickly develop into major issues.

Please contact our field team for further information.

Wide ranging services include:

• Roof repairs, replacements and upgrades
• Internal liners or replacement liners (EPDM, PVC or butyl)
• Access hatches
• Protective coatings
• Panel sheet repairs/replacement
• Fixings and sealants
• Concrete screeds
• Concrete tank lining
• Ancillary items
• Tank cleaning
• Complete removal and replacement of tanks

The thickness of materials cannot always be determined by direct measurement as access to both sides is not always possible. The effects of corrosion and erosion on the reverse of a metal panel may reduce its thickness significantly without being visually apparent on the outside of the tank.

All UTM readings are gauged on the material to be tested with calibration beforehand using a 10mm transducer probe and three known test materials in echo-to-echo mode.

Engineering support

Maintenance, repair and service works are fully supported by Balmoral’s engineering team. Advice is given on how existing installations can be brought up to current national and international standards including the improvement and addition of ancillary equipment.

Company engineers work to global standards providing analysis and design support on all tank upgrades and service provision.

Balmoral Tanks offers a wide range of service level agreements (SLAs) to suit client and facility management requirements. Created around engineering response times and/or pre-scheduled product coverage the company’s technical services teams provide international coverage.

Bespoke packages are provided to clients with unique requirements whatever the location.
